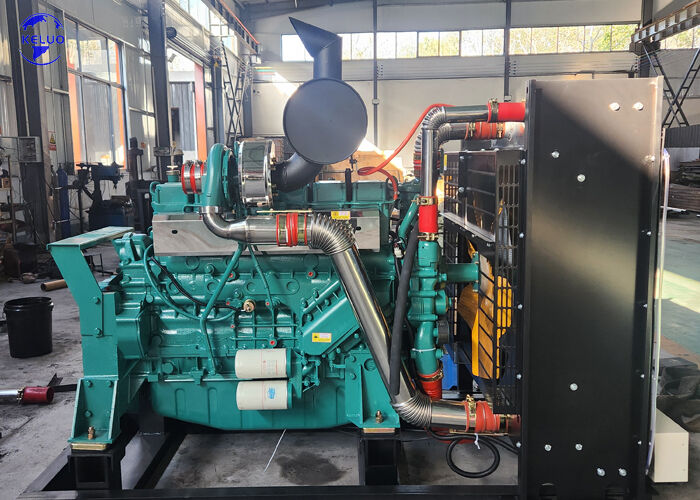

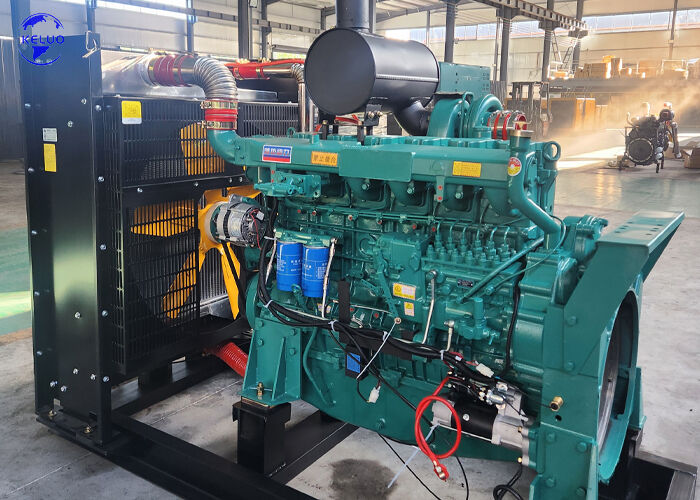

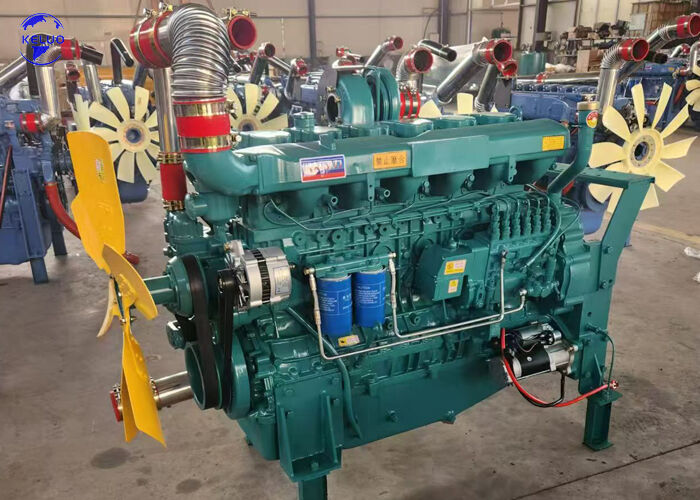

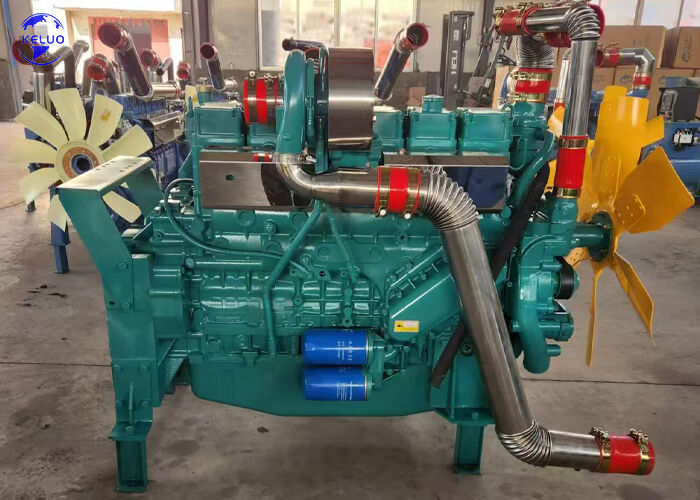

500HP New Weichai WP13 Engine For Water Pump

500HP New Weichai WP13 Engine For Water Pump

500HP Weichai WP13 water pump engine

Weichai WP13 high-power engine

water pump engine with warranty

Place of Origin:

Hebei, China

Brand Name:

Weichai

Certification:

CE/EPA/ISO

Model Number:

WP13

Contact Us

Request A Quote
Product Details
Product Name:
Weichai Engine WP13
Key Words:
Engine WP13
Application:
Truck
Package Size:
1300mm*1100mm*1300mm
Weight:
1000kg
Power:
500hp
Emission:
Euro 3
Bore(mm)xStroke(mm):
108x130
Payment & Shipping Terms
Minimum Order Quantity
1 unit
Packaging Details
Wooden case
Delivery Time
7-10 days
Payment Terms
L/C,T/T,Western Union,MoneyGram,D/A,D/P
Supply Ability
1000 unit per month
Product Description

Products Description

1. Basic Construction Overview

The WP13 550HP (WP13.550E501/E62) is Weichai’s flagship 12.54L heavy-duty inline-six diesel engine under the Blue Engine platform, developed for heavy commercial vehicles, construction machinery and mining equipment.
  • Structure: Inline 6-cylinder, 4-stroke, water-cooled, turbocharged & air-to-air intercooled
  • Valves: 4 valves per cylinder (total 24 valves)
  • Bore × Stroke: 127mm × 165mm | Total Displacement: 12.54 L | Compression Ratio:17:1
  • Fuel type: Ultra-low sulfur diesel | Fuel system: Bosch Electronic High Pressure Common Rail (HPCR) direct injection
  • 500HP New Weichai WP13 Engine For Water Pump 0500HP New Weichai WP13 Engine For Water Pump 1500HP New Weichai WP13 Engine For Water Pump 2500HP New Weichai WP13 Engine For Water Pump 3

2. Core Performance Parameters

Item Specification
Rated Power 550 HP / 405 kW
Rated Speed 1900 rpm (Euro5/Euro6 version)
Peak Torque 2500~2550 N·m @ 950–1400 rpm (wide low-speed torque band)
Min Full-load Fuel Consumption 185 g/kW·h (economical working range)
Dry Net Weight 1000–1050 kg
Two mainstream emission variants:
  • WP13.550E501 (Euro5/China National V): HPCR + SCR only
  • WP13.550E62 (Euro6/China National VI): HPCR+DOC+DPF+High-efficiency SCR + EGR



3. Key System Configuration

Fuel & Air Intake

  • Electronically controlled common rail injection with max injection pressure over 1600bar; fixed geometry turbocharger with intercooler for dense low-RPM air intake潍柴动力股份有限公司.

Lubrication & Cooling

  • Forced pressure lubrication system; engine oil sump volume ~29L; closed-circuit water cooling with total coolant capacity ~70L.

Electrical System

  • Standard 24V DC electric start system with starter motor and alternator, compliant with heavy-duty vehicle electrical standard.
  •

4. Main Technical Advantages

  1. Strong low-speed pulling power: Max torque kicks in from 950rpm, excellent for uphill, overloading and heavy haulage;
  2. High part interchangeability with Weichai WP12 series to cut maintenance cost & spare part stock cost
  3. Optimized combustion chamber design balances high power output and low fuel consumption for long-distance transportation;
  4. Mature aftertreatment system meets Euro 5/Euro6 global emission standards, available for EU, Russia, Southeast Asia market certification.



5. Typical Application Range

  • On-highway: 6×4 / 8×4 heavy-duty tractor trucks, large bulk cargo & container haulage vehicles;
  • Off-highway: 180–220t truck cranes, large mining dump trucks, heavy engineering machinery, stationary generator sets.



500HP New Weichai WP13 Engine For Water Pump 4
