KYB PSV2-55T Tandem Hydraulic Piston Pump Aftermarket Repair Part For Construction Machinery

KYB PSV2-55T Tandem Hydraulic Piston Pump Aftermarket Repair Part For Construction Machinery

Product Description:

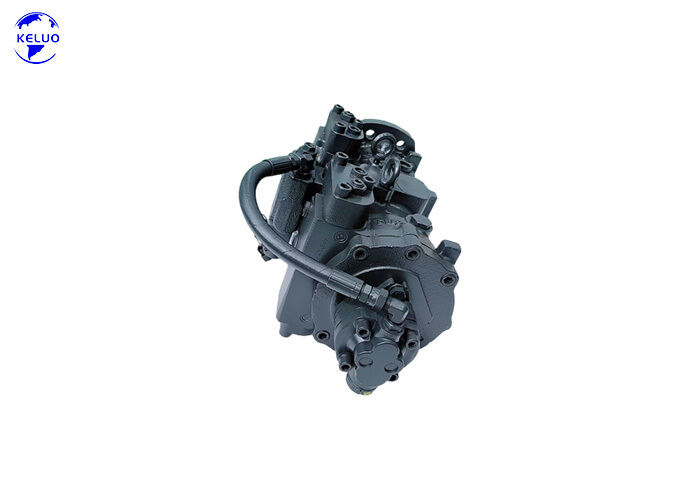

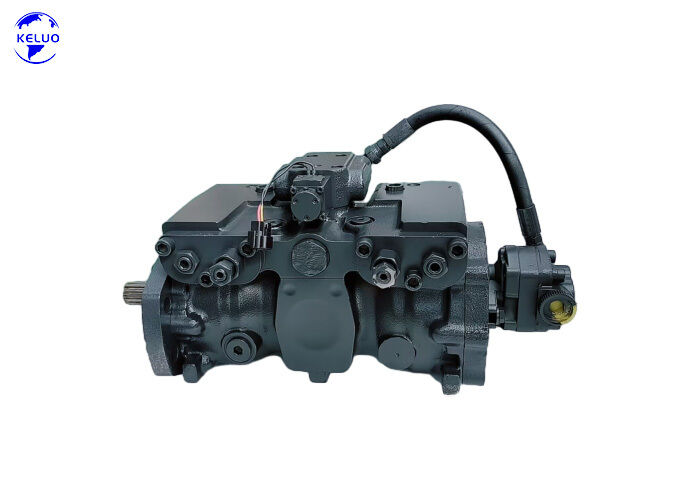

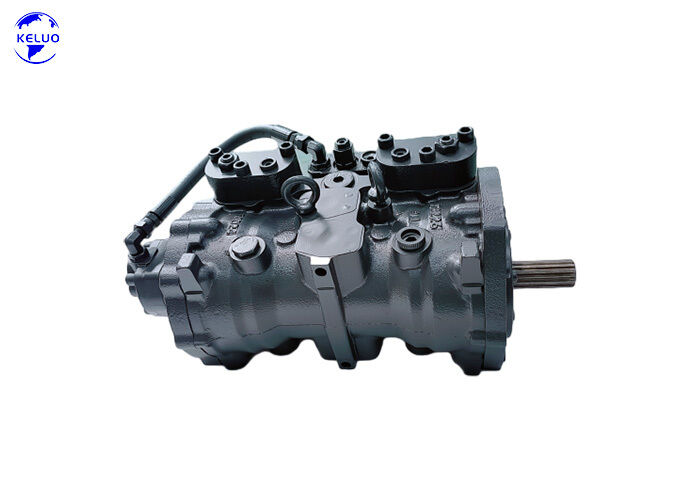

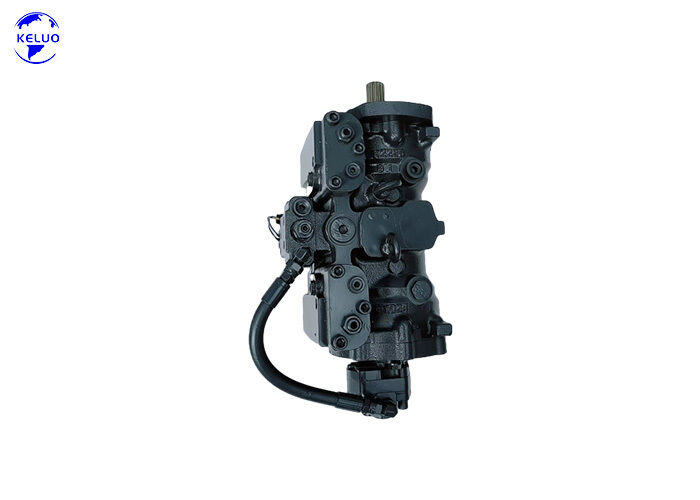

The KYB PSV2-55T is a tandem variable-displacement piston pump widely used in compact hydraulic excavators and other construction machinery. The suffix "T" stands for "Tandem" (indicating a dual-pump configuration), enabling the delivery of independent and ample hydraulic power within a compact footprint to operate the excavator's left and right travel systems, swing mechanism, and work equipment.

Features:

Model: KYB PSV2-55T

Displacement: Maximum displacement per single pump unit is 55 cc/rev (tandem pumps typically consist of two 55 cc pump bodies connected in series).
Maximum Working Pressure: Rated/maximum working pressure reaches 35.0 MPa (i.e., 350 bar or approximately 5,075 psi).
Maximum Shaft Speed: Up to 3,000 rpm.
Maximum Total Flow Rate: Under full system load, the maximum total flow rate typically reaches approximately 300 LPM (liters per minute).
Rotation: Typically clockwise (CW/Right-hand) when viewed from the shaft end.
Material: Features a high-strength cast iron pump body, offering excellent resistance to high pressure and impact.

Bulk purchasing and long-term distributor partnerships are welcome!

Applications:

KYB PSV2-55T

This pump is primarily used as the main hydraulic pump for excavators in the 12- to 16-ton range:
Sumitomo: SH120 and SH135 series excavators
Case: CX130 series excavators
JCB: JCB160 series excavators

Excavators: Drives the engine cooling fan to meet heat dissipation requirements during high-load operations.
Loaders: Used for driving hydraulic fans to cool the engine and hydraulic systems.
Mining machinery: Suitable for driving hydraulic fans in high-temperature, high-load operating environments.
Concrete machinery: Used for engine cooling and hydraulic system heat dissipation.
Drilling rigs and construction machinery: Provides stable fan drive power for engine cooling systems.
Agricultural machinery: Used in hydraulically driven cooling fan systems.
Industrial equipment: Suitable for equipment requiring hydraulically driven cooling fans.

Similar products:

KYB PSV2 Series & Related Product Portfolio

Packing and Shipping:

Our Hydraulic Pump is carefully packaged to ensure maximum protection during transit. Each unit is securely wrapped in anti-static foam and placed inside a sturdy, corrugated cardboard box designed to withstand rough handling. The packaging includes custom-fit inserts to prevent movement and damage to sensitive components.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. Depending on the destination, shipments are made via air, sea, or land transport, with all necessary documentation provided for customs clearance. Customers receive a tracking number upon dispatch to monitor their order until it arrives.

We recommend inspecting the package upon receipt and reporting any damage immediately to facilitate prompt resolution. Our commitment is to deliver your Hydraulic Pump in perfect condition, ready for installation and operation.

FAQ:

Q1: Where is the hydraulic pump manufactured?

A1: The hydraulic pump is manufactured in China.

Q2: What is the minimum order quantity for this hydraulic pump?

A2: The minimum order quantity is 1 unit.

Q3: How is the hydraulic pump packaged for delivery?

A3: The hydraulic pump is securely packed in a wooden box to ensure safe transportation.

Q4: What is the typical delivery time for the hydraulic pump?

A4: The delivery time ranges from 3 to 15 days depending on the order and shipping location.

Q5: What payment methods are accepted for purchasing the hydraulic pump?

A5: Payment can be made via T/T or bank transfer.

Q6: What is the supply capacity for the hydraulic pump?

A6: The supply ability of the hydraulic pump is up to 900,000 units.
